The following are the dimensions of the element :

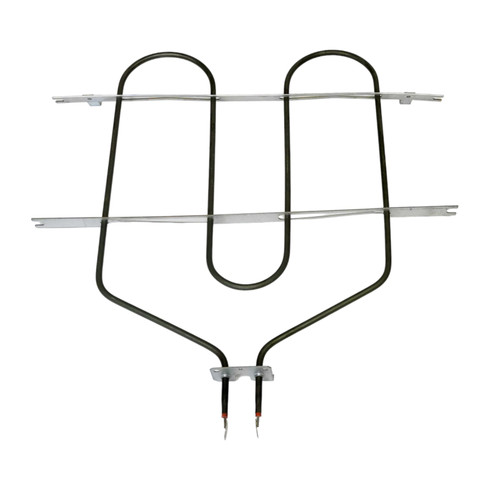

16-3/4" Long from Mounting Bracket to end of Element
2-1/2" Long from Bracket to terminal end.
Terminals are male spade connectors
Mounting bracket (that mounts to back of oven) has 3 holes for mounting to back of range & one side of the bracket has a slight bend to it
Mounting bracket that mount to ceiling of oven, there are 2 of them, both are 17-1/2" wide, one of them has 2, 90 degree metal bracket welded to it & they measure 14-1/4 center to center
Replacement for the numbers PS249284 and AP2030995.
It is designed to fit specific General Electric manufactured range models including Hotpoint and RCA.
Buy the new Electric Oven Broil Element http://www.appliancepartspros.com/range-cooktop-oven-heating-element.html Follow these simple step-by-step instructions to replace an Oven Broil Element on Whirlpool, Sears, Kenmore, Roper, KitchenAid, Inglis, Estate, Maytag, Jenn-Air, Amana, Magic Chef, Admiral, and Norge electric ovens. Symptoms: Oven not heating on broil setting. Buy the new Electric Oven Broil Element http://www.appliancepartspros.com/range-cooktop-oven-heating-element.html Most orders delivered in 2 business days or less. Tools needed: Phillips screwdriver. This video works for the following oven broil elements: W10308476, 9757340, 74003908, WB44T10077, 4453625, WB44K10013, WB44K10017, 62076, 4456105, 4364185, 368941, WB44X5092, WB44X5090, W10314704, WB44K10028, 9760776, WB44T10047, 5303285966, WB44X10017, WB44K5031, WB30X5158, 7406P473-60, 484613, 77001097, 367651, 74011910, 487252, 484777, WB44X5093, 82817, 8053874, 367644, W10017516, WB44X10027, WB44X5074, W10310260, W10314687, 74003042, WB44X139, Y07431100, WB44T10012, WB44K5017, Y04100016, 367645, Y04100015, Y04000057, 220T017P02, 9760774, 9757341, 5303051516, 5303016247, Y0061732, 865638, WB44M5, 316203301, 74008692, Y04100514, 74001234, Y04000059, 367647, W10310249, 326795, WB44X10015, WB44T10043, Y0063532, WB44K10002, WB44X134, 9750967, 9760771, 5303051140, WB44K5009, 814431, WB44T10009, W10201551, WB44X173, 660579.
