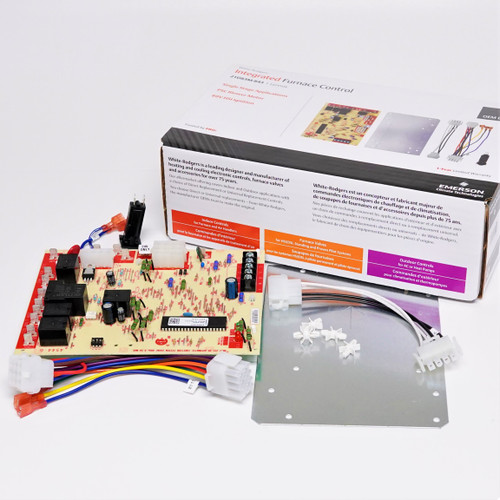

  • Furnace Fan control white Rodger, part number  21D83M, main view.
  • Furnace Fan control white Rodger, part number  21D83M, top view.
  • Furnace Fan control white Rodger, part number  21D83M, label view.
  • Furnace Fan control white Rodger, part number  21D83M, bottom view.
  • Furnace Fan control white Rodger, part number  21D83M, main view 2.
  • Furnace Fan control white Rodger, part number  21D83M, part sheet view.
  • Furnace Fan control white Rodger, part number  21D83M, wire view.
  • Furnace Fan control white Rodger, part number  21D83M, part sheet view 2.

21D83M-843 Furnace Fan Control for Lennox 83M00 50A66-122 50A66-123 White Rodger

$136.77
SKU:
21D83M-843
Condition:
New
Current Stock:
7
Quantity:

Product Description

Up for sale is a White-Rodgers part number 21D83M-843.

This item is Brand New, In the Package and Unused.

Nitride Ignition. Integrated Furnace Control.
Controls Gas Valve, Ignitor, Blower, Inducer,
Humidifier and Air Cleaner. Replaces Lennox models.
Kit includes:
1 50A66-843 Ignition Control Board
1 Wiring harness (9-pin to 12-pin)
1 Wiring harness (4-pin to 6-pin)
1 Mounting panel
4 Stand-off fasteners
1 Circuit breaker
1 4" blue wire
2 Wiring diagrams

Features:
Includes diagnostic indicator flash codes
3 fan speeds
Remote flame sense
Humidifier and electronic air cleaner connections (optional)

Specifications:
Input Voltage: 25 VAC 50 / 60 Hz
Maximum Input Current @ 25 VAC: 0.45 amp
Valve Relay: 1.5 amp @ 25 VAC 50 / 60 Hz 0.6 pf
Ignitor Relay: 2.0 amp @ 120 VAC 50 / 60 Hz (resistive)
Inducer Relay: 2.2 FLA 3.5 LRA @ 120 VAC
Circulator Relay: 14.5 FLA 25.0 LRA @ 120 VAC
Operating Temperature Range: -40 to +175F (-40 to +79C)
Humidity Range: 5% to 93% relative humidity (non-condensing)

Timing Specifications:

Pre-purge: 15
Heat delay to fan ON 45
Heat delay to fan OFF 60/90/120/180
Cool delay to fan ON 2
Cool delay to fan OFF 2/45
Auto reset 60 minutes

Replacement for Lennox numbers:

10M9301, 32M8801, 56L8401, 24L8501, 63K8901, 97L4801, 100925-01, 100925-03, 17W9201, 23W5101, 30W2501, 69M0801, 69M1501, 83M00.

Replacement for White Rodgers numbers:

50A65-120, 50A65-121, 50A62-120, 50A62-121, 50A62-820, 21D83M-843, 50A66-122, 50A66-123.
