Packard Furnace Draft Inducer Motor, 66781

Packard Furnace Draft Inducer Motor 66781 for Rheem, Rudd 70-101087-01, 70-101087-81 7021-11559

$187.72
SKU:
66781
UPC:
840899111759
Condition:
New

Product Description

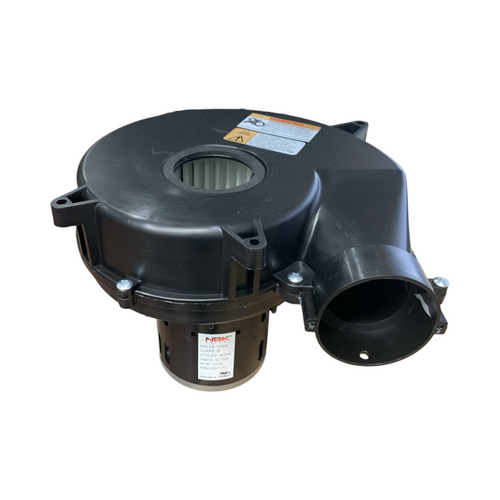

Packard Draft Inducer Blower Motor Assembly 66781.

This fits specific Rheem-Rudd units & is a replacement for numbers 7021-11559, 70-101087-81, 70-101087-01, 70-2417581 and NBK-12179, Nidec N781, US Motors N781


Motor Specifications:

  • 115 Volts
  • 0.60 Amps
  • 3000 RPM
  • Single Speed
  • PSC Capacitor Start, Capacitor Included and Mounted on Motor
  • Ball Bearing
  • 3-1/3" Diameter Motor
  • Thermally Protected
  • CCW Rotation as viewing lead end

Product Reviews

Write a Review
  • 4
    Good replacement

    Posted by Inspector on 6th Dec 2020

    Pretty much an exact replacement,, had to use ground wire from previous motor connection. Also the rubber\silicone sleeve used to connect to the flue pipe is a few mm larger than previous one making it extremely difficult to slide into the flue pipe exhaust.

  • 5
    a BIG thanks!

    Posted by Steve on 14th Apr 2018

    I knew what my furnace problem was but I couldn't get a local supply house to sell me the part they likely needed to order for less than $300. You were very helpful in getting me the right part and six screws later I had heat.
    Thank you for your help and professionalism.
